132 ton Horizontal Directional Drilling Rig machine DILONG DL1320

Name: 132 ton Horizontal Directional Drilling Rig machine DILONG DL1320
Brand: DILONG
Price: 1 USD

Wholesale 132 ton Horizontal Directional Drilling Rig machine DILONG DL1320 from china suppliers

Brand Name : DILONG

Model Number : DL1200

Place of Origin : NANJING-CHINA

MOQ : ONE SET

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : 1-40FR FOR machine and 1-40GP AND 1-20 GP FOR spare HDD PARTS

Certification : ISO9001

ENGINE : CUMMINS 264 KW

THRUST : 550 KN

PULLBACK : 1320 KN

TORQUE : 35000

ROTARY SPEED : 100 RPM

MUD PUMP : 800 L/MIN

Contact Now

KEY POINT:

1. With the use of closed loop of tha main rotation hydraulic system ,DL1200 cralwer integrated horizontal directional drilling machine has better working efficiency.

2.It has 264Kw engine . .its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient.

3. High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.The high-strength drill pipe holder is sent on the outer side of the crossarm ,featuring simplicity ,reliablibity,easy assembly&disassembly of drill pipe and high efficiency with the use of 2t hoist .

4. The top-end PALL filter can ensure cleanness of the hydraulic system and long service life of the equipment .Doubled-WAll rock drilling function imterface is reserved.

Specification:

Engine	kw	264/2200	Dimension(LWH)	mm	1055926303315
Max.thrust force	KN	550	Weight	T	23
Max.pullback force	KN	1320	Diameter of drill rod	mm	Φ114
Max.torque	N.m	35000	Lendht of drill rod	m	4.5
Max.Rotary speed	rpm	100	Max diameter of pullback pipe	mm	Φ1300
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~900
Max.mud puump flow	L/min	800	Incidence angle	.	8~18
Max.mud pressure	Mpa	10±0.5	Climbing angle	.	14

Details:

132 ton Horizontal Directional Drilling Rig machine DILONG DL1320

Whatsapp number:008618936869890

Product Tags:

directional drilling equipment

hdd equipment

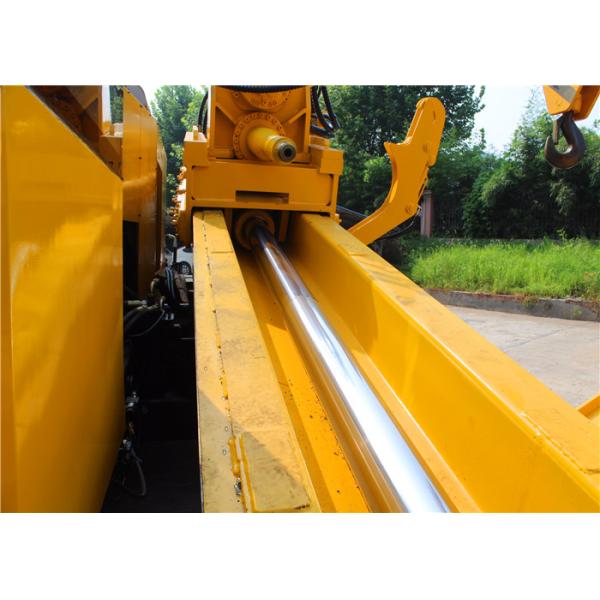

132 ton Horizontal Directional Drilling Rig machine DILONG DL1320 Images
