Four Pump Hydraulic Horizontal Directional Drilling Machine 33 TON Hdd Equipment

Name: Four Pump Hydraulic Horizontal Directional Drilling Machine 33 TON Hdd Equipment
Brand: DILONG
Price: 1 USD

Wholesale Four Pump Hydraulic Horizontal Directional Drilling Machine 33 TON Hdd Equipment from china suppliers

Brand Name : DILONG

Model Number : DL330

Place of Origin : NANJING CHINA

MOQ : 1 SET

Price : NEED DISCUSS

Payment Terms : L/C, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

Certification : ISQ9001

ENGINE : CUMMINS 153KW

THRUST : 330/660 KN

PULLBACK : 330/660 KN

TORQUE : 1300 N.N

ROTARY SPEED : 120 RPM

MUD PUMO : 400 L/MIN

Contact Now

33 TON Horizontal directional drilling machine by China DILONG DL330 MANUAL

KEY POINT:

1. With the use of four-pump hydraulic system ,DL330 drilling machine has better working efficiency

2. rational power distribution .its forced air cooling system enables it to work reliably for long time.

3. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.Additionally.operationl force adding mechanism is available to provide additional force of 33t.

4. the holder can realize automatic alignment,and is of national patented product.

Specification:

Engine	KW	153/2200	Dimension(LWH)	MM	691022122520
Max.thrust force	KN	330/660	Weight	T	11.8
Max.pullback force	KN	330/660	Diameter of drill rod	MM	Φ73
Max.torque	N.m	13000	Lendht of drill rod	M	3
Max.rotary speed	rpm	120	Max diameter of pullback pipe	MM	Φ150-Φ180
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~150
Max.mud pump flow	L/min	400	Incidence Angle	.	11~20
Max.mud pressure	Mpa	8±0.5	climbing Angle	.	14

Four Pump Hydraulic Horizontal Directional Drilling Machine 33 TON Hdd Equipment

Product Tags:

hdd drilling machine

hdd equipment

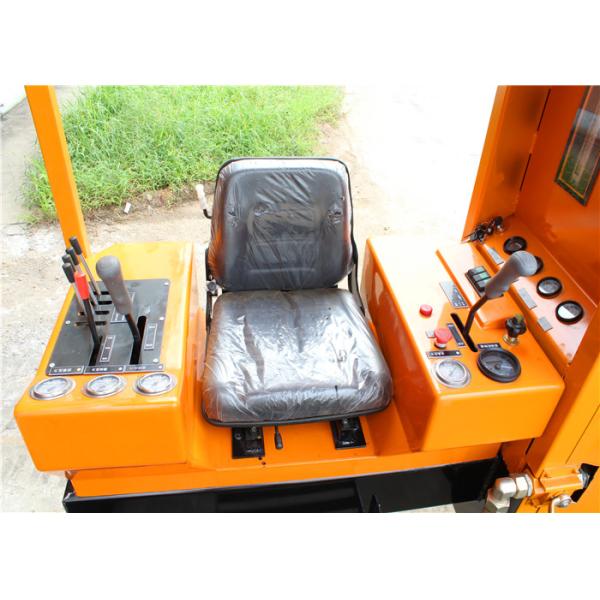

Four Pump Hydraulic Horizontal Directional Drilling Machine 33 TON Hdd Equipment Images
